Mix Telematics Integration

Overview



Gearbox integrates with Mix Telematics via API every night to retrieve odometer and hourmeter readings. These readings play a crucial role in Gearbox for calculating Services Due and tracking running costs per hour/kilometer. Automatic readings sourced from telematics are preferred over manual entries due to their reduced susceptibility to user error. Furthermore, the API feed from Mix Telematics ensures consistent and timely capture of readings.

You must have an active MiX Telematics account and Gearbox administrative privileges to complete the below steps.

Please Note: Gearbox uses vehicle 'Fleet Number', 'Registration' or 'VIN' to match Assets in Mix Telematics using the 'FleetNumber' or 'VinNumber' field, Please ensure these are matching within Gearbox and Mix Telematics for the integration to work.

Integrating with MiX Telematics

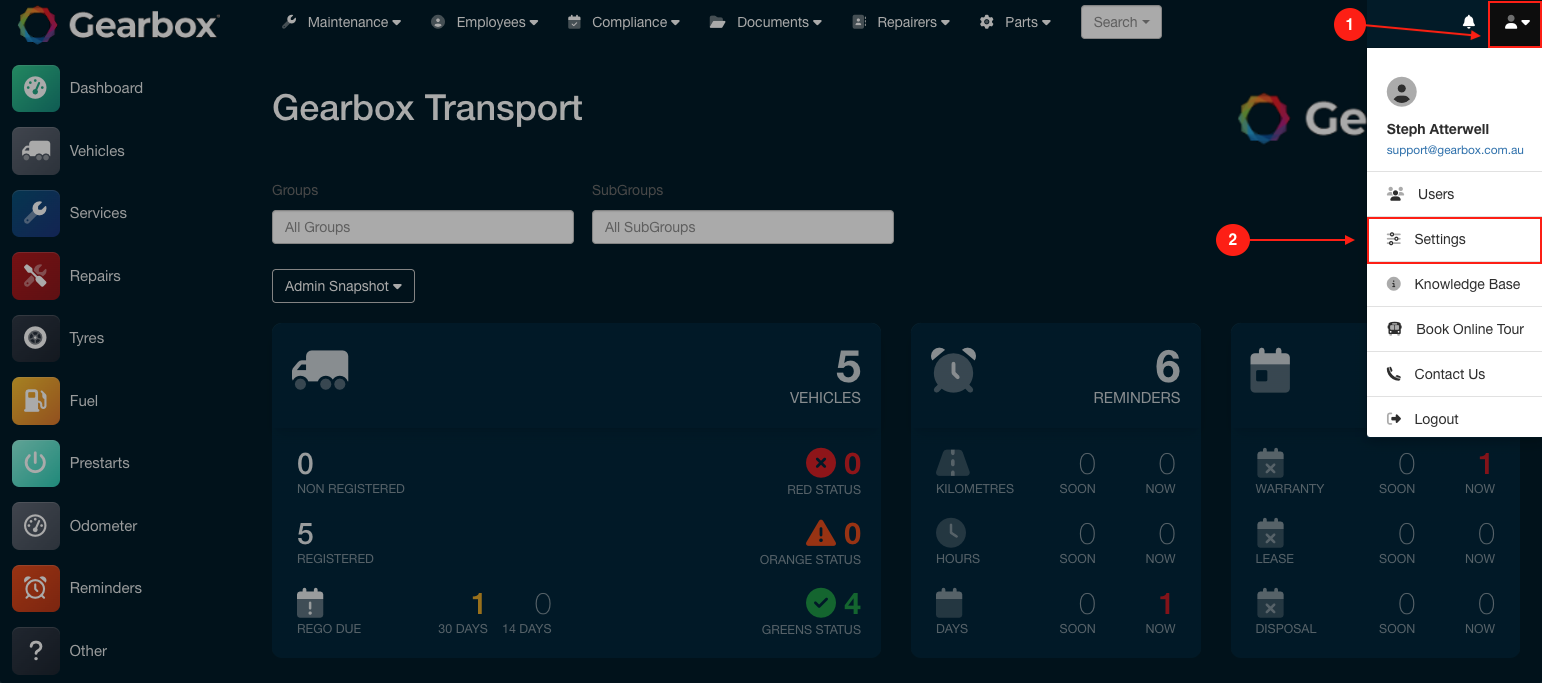

1. Click on your User Icon (1), then click on Settings (2)

Integrating with MiX Telematics - Admin Dashboard

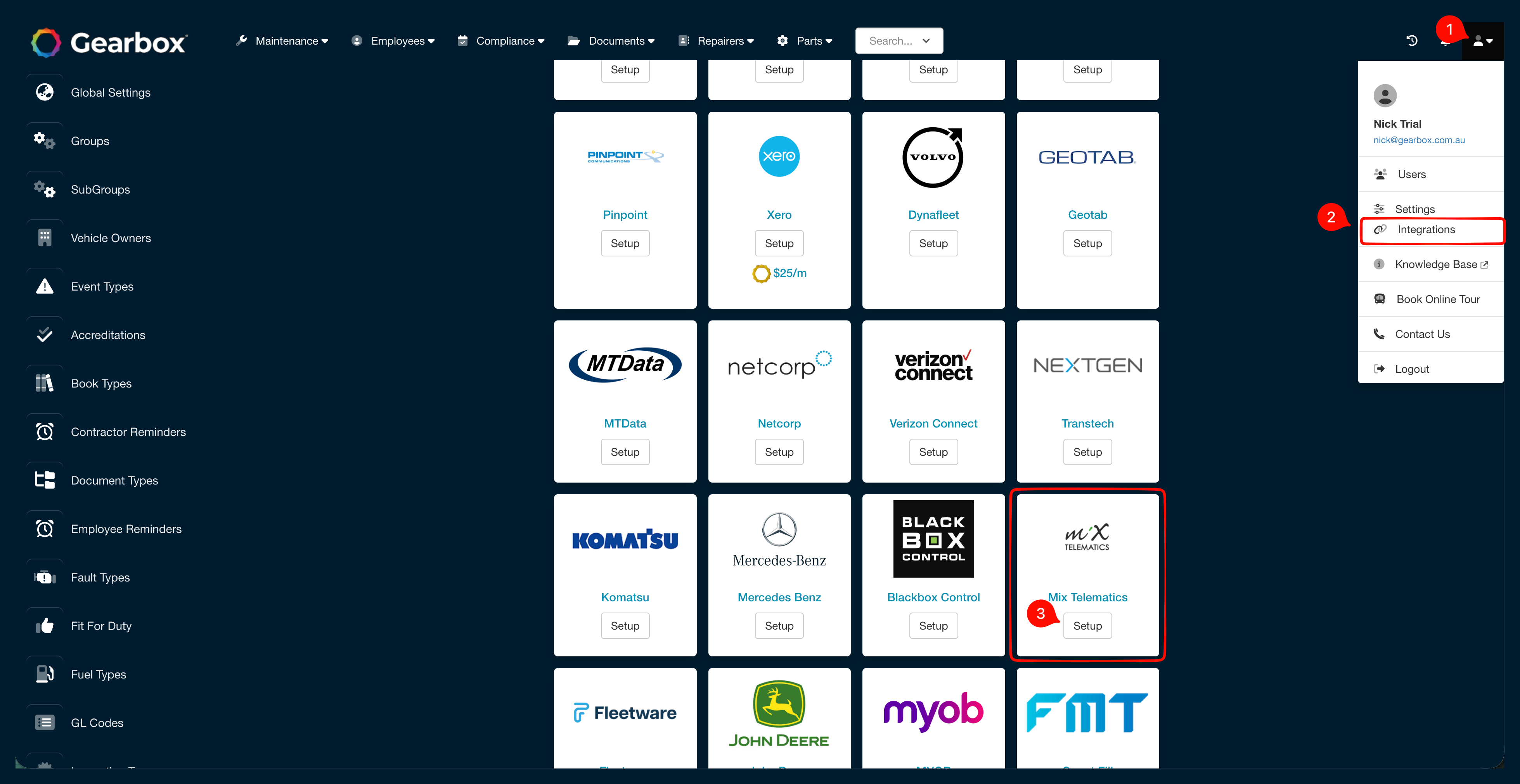

2. On the left-hand side of the screen, scroll down and click on Integrations (3)

Integrating with MiX Telematics - Settings

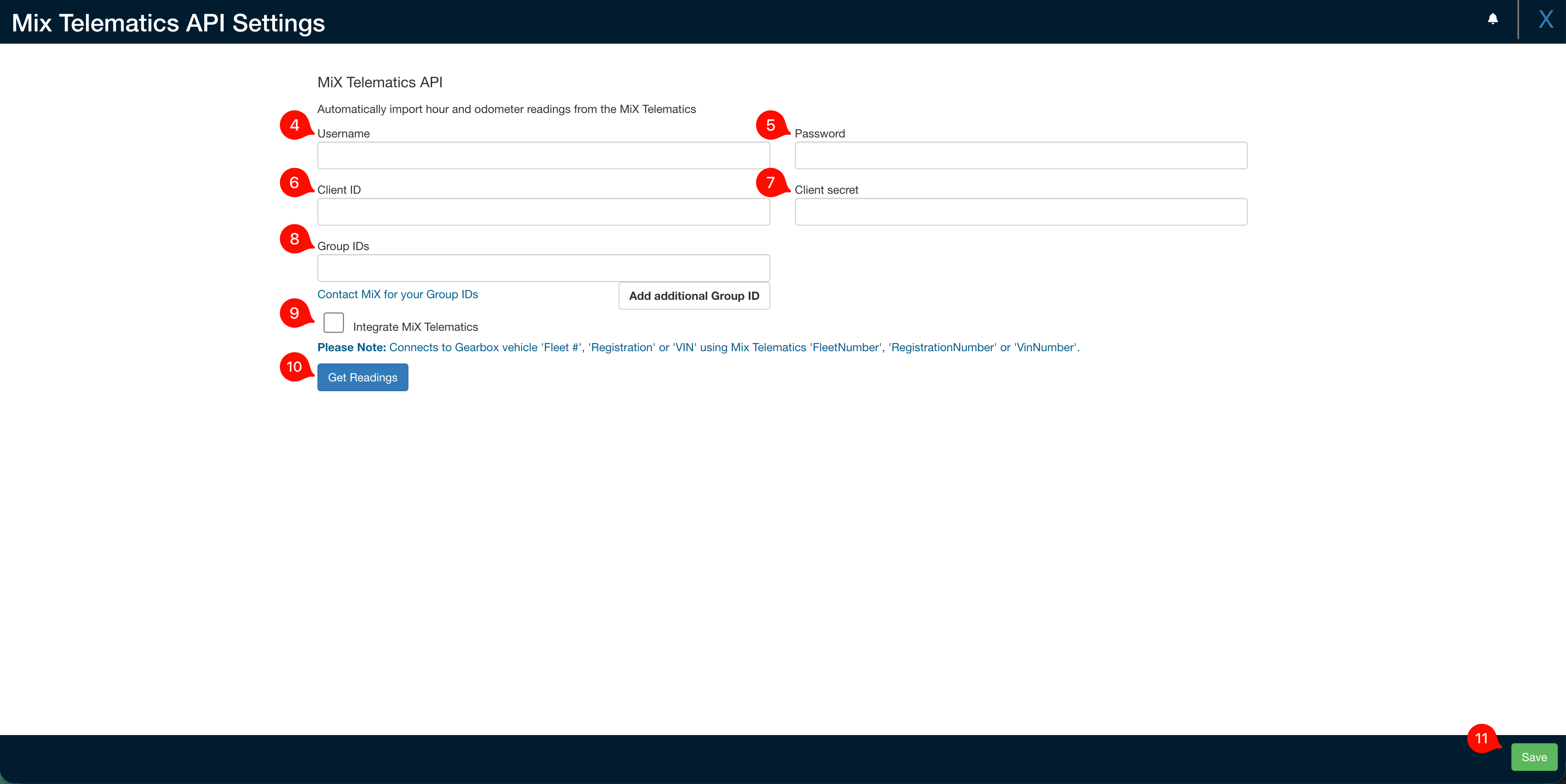

3. Scroll down to MiX Telematics and enter your Username (4), Password (5), Client ID (6), Client Secret (7), Group IDs (8) provided by MiX Telematics. Tick Integrate MiX Telematics (9), click Save (10), then click Get Readings (11) to get initial readings. Gearbox will then connect to MiX telematics and collect readings each evening.

Integrating with MiX Telematics - MiX Telematics Login





Get Current Readings

Hour and odometer readings automatically sync every night. Additionally, users have the option to manually trigger an update at any time. To get the current readings, proceed with steps (1-3), then click Get Readings (11) above.
